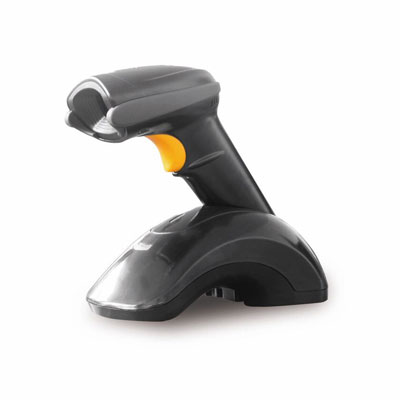

Aimasen AMS-513 藍牙無線二維影像掃描器
Aimasen AMS-513藍牙無線二維影像掃描器
Cordless 2D Area Imager- Bluetooth
Cordless 2D Area Imager- Bluetooth
產品概覽：
100m超長距離通訊
100m Long Distance Communicantion
HD/SR
藍牙無線技術
Bluetooth Wireless Technology
多國語言條碼信息直傳 Multiple language barcode message transfer
大視角影像感光器
精準的紅光瞄準器
Super large field of view
高速、全方位的一維、二維碼影像讀取
空曠100m數據傳輸
電池容量2500mAh, 快充和無線充電可選
符合人體工程學設計
可連接底座，iOS、Android手機平板電腦等
100m Long Distance Communicantion
HD/SR
藍牙無線技術
Bluetooth Wireless Technology
多國語言條碼信息直傳 Multiple language barcode message transfer
大視角影像感光器
精準的紅光瞄準器
Super large field of view
高速、全方位的一維、二維碼影像讀取
空曠100m數據傳輸
電池容量2500mAh, 快充和無線充電可選
符合人體工程學設計
可連接底座，iOS、Android手機平板電腦等
產品參數：
| Aimasen AMS-513 技術規格書 Technical Specification | |
| 尺寸Dimensions: | 180mm x 95mm x 70mm |
| 重量Weight: | 212g |
| 電壓Voltage\電流Current: | 5 VDC +/-10% @ 400 mA |
| 傳感器像素Image (Pixels): | 640 pixels (H)x 480 pixels (V) |
| 光源Light Source: Aiming: | 617 nm LED; illumination: 6500K LED |
| 視場角Field of View: | 45° (H) x 35° (V) |
| 旋轉傾斜偏轉Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
| 電池容量: | 4.2v/2500mAh |
| 充電時間: | 8-10h wireless, 4h wired |
| 續航時間: | 1秒掃描一次，可連續工作12小時。(新電池，滿電) |
| 無線技術Wireless technolngy: | Bluetooth v2.1 |
| 操作距離Operao n distance: | 100 meters (open space) |
| 打印對比度Print Contrast: | 25% minimum reflec ve difference |
| 接口支持Interfaces Supported: | USB, RS232 |
| 運動容差 Tolerances: | up to 25 in. (63.5 cm) per second |
| 一維條碼1-D: | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
|
| 二維條碼2-D: | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,
etc.
|
| 工作溫度Opera g Temperature: | 0°C to 50°C |
| 存儲溫度Storage Temperature: | -40°C to 70°C |
| 濕度Humidity: | 0% to 95 |
| 抗震動Shock Speci?cations: | Designed to withstand 1.5m(5’) drops |
| 環境光免疫Ambient Light Immunity: | 100.000 Lux. |
| 5 mil (Code 39): | 50mm-110mm |
| 13 mil (100% Upca) : | 30mm-300mm |
| 1D Minim alRe: | 4mil |
